realaege-banner
realedge-logo

Mere GHAR
Ka Gehna

Steel For Beautiful Grills

Request A QuoteRead More

About Us Realedge Grill Solution in India

Real Edge is rolled from superior quality billets produced at SRMB’s own plant to ensure consistent quality. All billets are cast from superior quality ore. The billets are tested to maintain the certified composition of Carbon, Sulphur & Phosphorus in the MS sections which makes it the best choice for fabrication. SRMB Srijan Private Limited is an IMS (ISO 9001:2015/ISO 14001: 2015/OHSAS 8001:2007) certified six decades-old Primary Steel Producer (classified by Joint Plant Committee under Ministry of Steel).

We manufacture TMT bars, CRS TMT Bars & Structural items with a turnover of more than 1600 crore per annum. SRMB manufactures TMT Bars and structural steel from its captive raw material (billet) in the two state-of-the-art finished steel production units in Durgapur (West Bengal).

Read More

Products Introduce With Our Products

/assets/images/real-pro1.png

MS Square

The CHG series channels are precision-engineered with a depth tolerance of ±2.5 mm (up to 200 mm) and flange width tolerance of ±2.0 mm (up to 100 mm). CHG 16 and CHG 20 feature 3.2 mm web and flange thicknesses with nominal masses of 0.760 kg/m and 0.860 kg/m respectively. The heavier CHG 40 offers a 40 mm depth, 32 mm flange, 5 mm web, and 7.5 mm flange thickness, with a nominal mass of 4.820 kg/m.

/assets/images/real-pro2.png

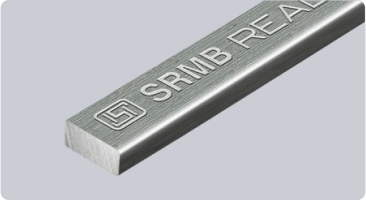

MS Flat

MS Flats are manufactured with high dimensional accuracy, offering a width tolerance of ±1.0 mm (up to 50 mm) and a thickness tolerance of ±0.5 mm (up to 12 mm). Common variants include FLATS 19X6 (19 mm × 6 mm) with a nominal mass of 0.895 kg/m, and FLATS 20X5 (20 mm × 5 mm) at 0.785 kg/m. Heavier options like FLATS 25X6 (25 mm × 6 mm) and FLATS 40X6 (40 mm × 6 mm) provide nominal masses of 1.180 kg/m and 1.880 kg/m respectively, suitable for a range of structural and fabrication applications.

/assets/images/real-pro3.png

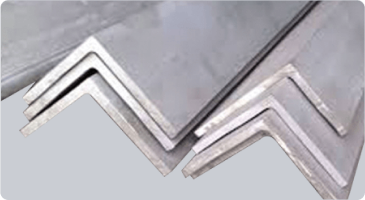

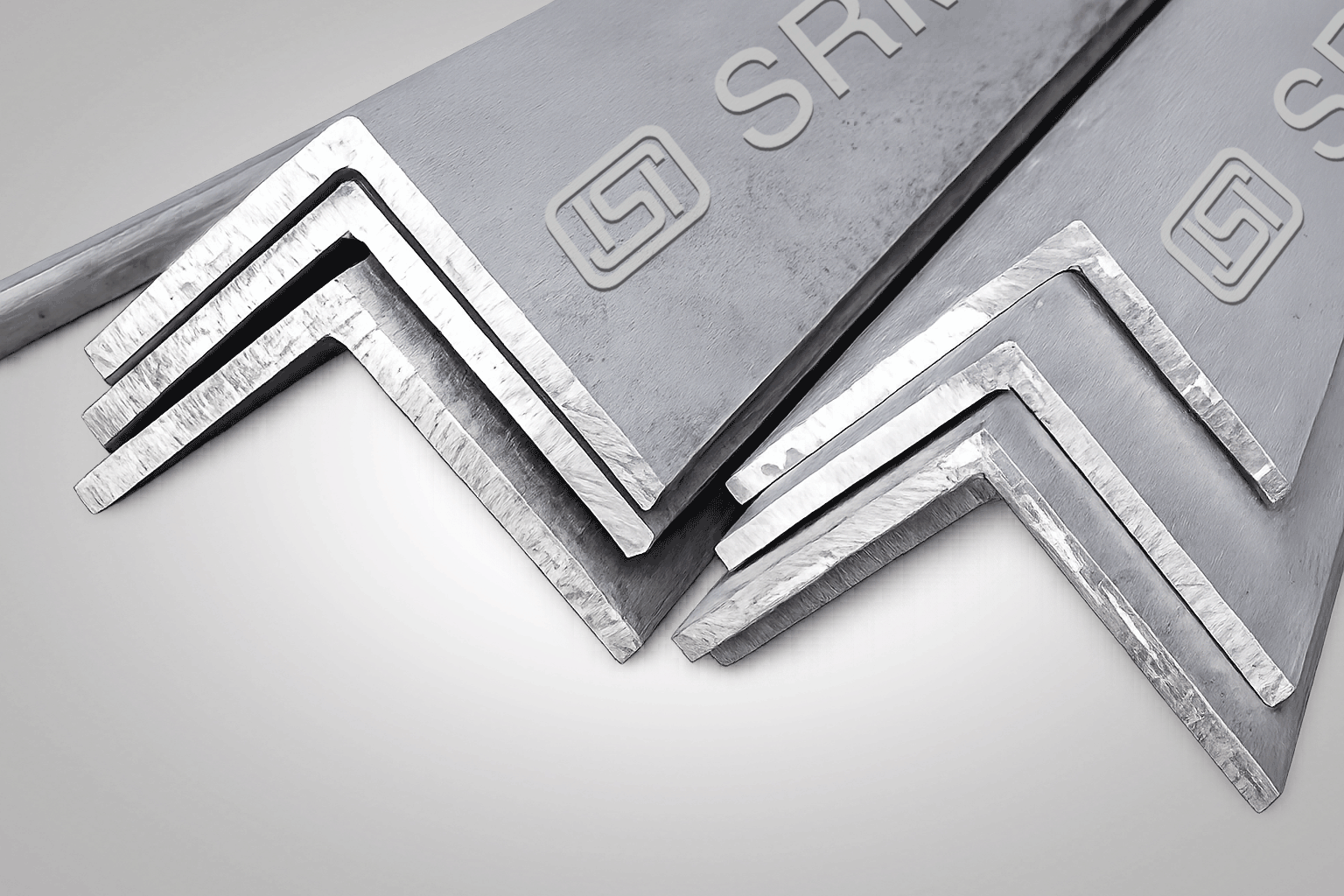

MS Angle

MS Angles are produced with precise leg length tolerances of ±1.5 mm (up to 45 mm) and ±2.0 mm (over 45 mm, up to 100 mm), with standard root radii ranging between 4.5 mm and 5.5 mm. Sizes such as 25×25×3 mm and 25×25×5 mm offer nominal weights of 1.100 kg/m and 1.800 kg/m respectively. For heavier structural use, variants like 35×35×5 mm and 40×40×6 mm provide nominal weights of 2.600 kg/m and 3.500 kg/m, making them ideal for robust fabrication and framing applications.

/assets/images/z-angles.png

Z-Angles

Z-Angles with dimensions up to 50 mm feature a width tolerance of ±1.0 mm. The F7D designation, covering thicknesses over 10.0 mm & up to 25 mm, has a tolerance of ±0.4 mm. It offers a nominal mass of 1.419 kg/m, with a minimum of 1.348 kg/m and a maximum of 1.490 kg/m, making it ideal for applications requiring precision and consistency in mass distribution.

/assets/images/gate-channel.png

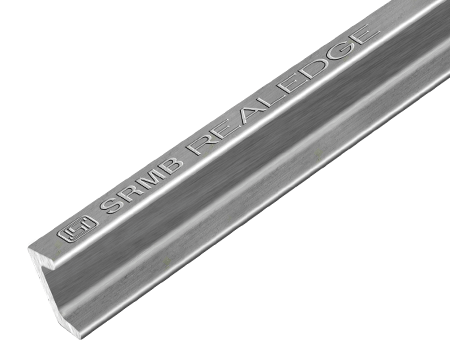

Gate Channel

Gate Channels are manufactured with high precision, maintaining a depth tolerance of ±2.5 mm (up to 200 mm) and flange width tolerance of ±2.0 mm (up to 100 mm). CHG 16 features a 16 mm depth and 10 mm flange, with 3.2 mm thickness for both web and flange, and a nominal mass of 0.760 kg/m. CHG 20 offers a 20 mm depth and the same 10 mm flange and thickness, with a nominal mass of 0.860 kg/m. The heavier CHG 40 has a 40 mm depth, 32 mm flange, 5 mm web, and 7.5 mm flange, with a nominal mass of 4.820 kg/m.

Structural Steel Items Built With

/assets/images/stract-1.png

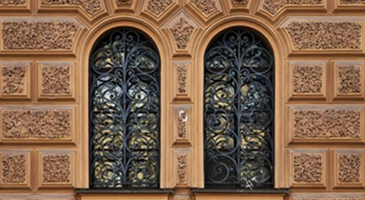

Window Grill

Window Grills are made using durable MS Flats, Angles, and Channel sections, offering a combination of strength and aesthetic appeal. Common sizes like 25×5 mm MS Flats and 25×25×5 mm MS Angles provide a sturdy framework, while Channel sections offer additional rigidity, making them ideal for both security and style in residential and commercial applications.

/assets/images/stract-2.png

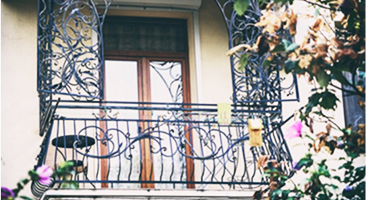

Balcony Railing

Balcony Railings are constructed using robust MS Flats, Angles, and Channel sections for strength and durability. Common sizes such as 25×5 mm MS Flats and 30×30×3 mm MS Angles ensure a secure structure, while Channel sections provide added stability. These materials make balcony railings not only secure but also stylish, suitable for both residential and commercial properties.

/assets/images/stract-3.png

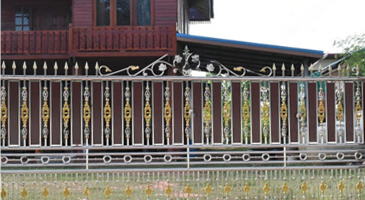

Main Gate

Main Gates are crafted using high-strength MS Flats, Angles, and Channel sections for superior durability and security. MS Flats, such as 25×5 mm, and MS Angles like 30×30×3 mm provide a solid framework, while Channel sections offer added support and rigidity. These materials ensure that main gates are both secure and visually appealing, suitable for residential and commercial entrances.

Why Choose
SRMB Real Edge

Key Benefits & Features

Read More
readgegrill

Advantages OF Real Edge

  • Properly Straightened
  • Precision Quality
  • Defect Free
  • Flat Ends
  • Uniform Thickness
  • Superb Finish
  • Greater Malleability
  • Smooth Edges
  • Cost Efficient
  • Fins Free

Quality Control

core-value-icon

Advanced European Technology

Using advanced European Technology & establishes highest precision in the MS Flats (ISF) & Square bars (ISSQ) conforming to IS 1730:1989 and IS 1732:1989 specifications. The Real Grill steel sections also conforms to IS 2062:2011 specifications for weld-convenient & economical choice for fabricators.

core-value-icon

Automated Cooling Bed Promotes

The walking type automated cooling bed promotes faster production ensures that the products are properly straightened by eliminating the defects that may arise due to manhandling.

core-value-icon

Automated Block Mill Fitted

SRMB group is the pioneer in using 100% automated Block mill fitted with tungsten carbide rollers, enabling them to produce grill sections with perfect shape, uniform thickness equal standard length of 6 meters.

Schedule A FREE Consultation Now, We are Eager to Hear From You...

Schedule a Free Consultation Now! We are eager to hear from you and help you with all your construction and fabrication needs. Whether you need guidance on selecting the right materials, such as MS Flats, Angles, or Channel sections, or assistance with designing durable and stylish structures like window grills, balcony railings, or main gates, our experts are here to assist you every step of the way. Contact us today to get started!
